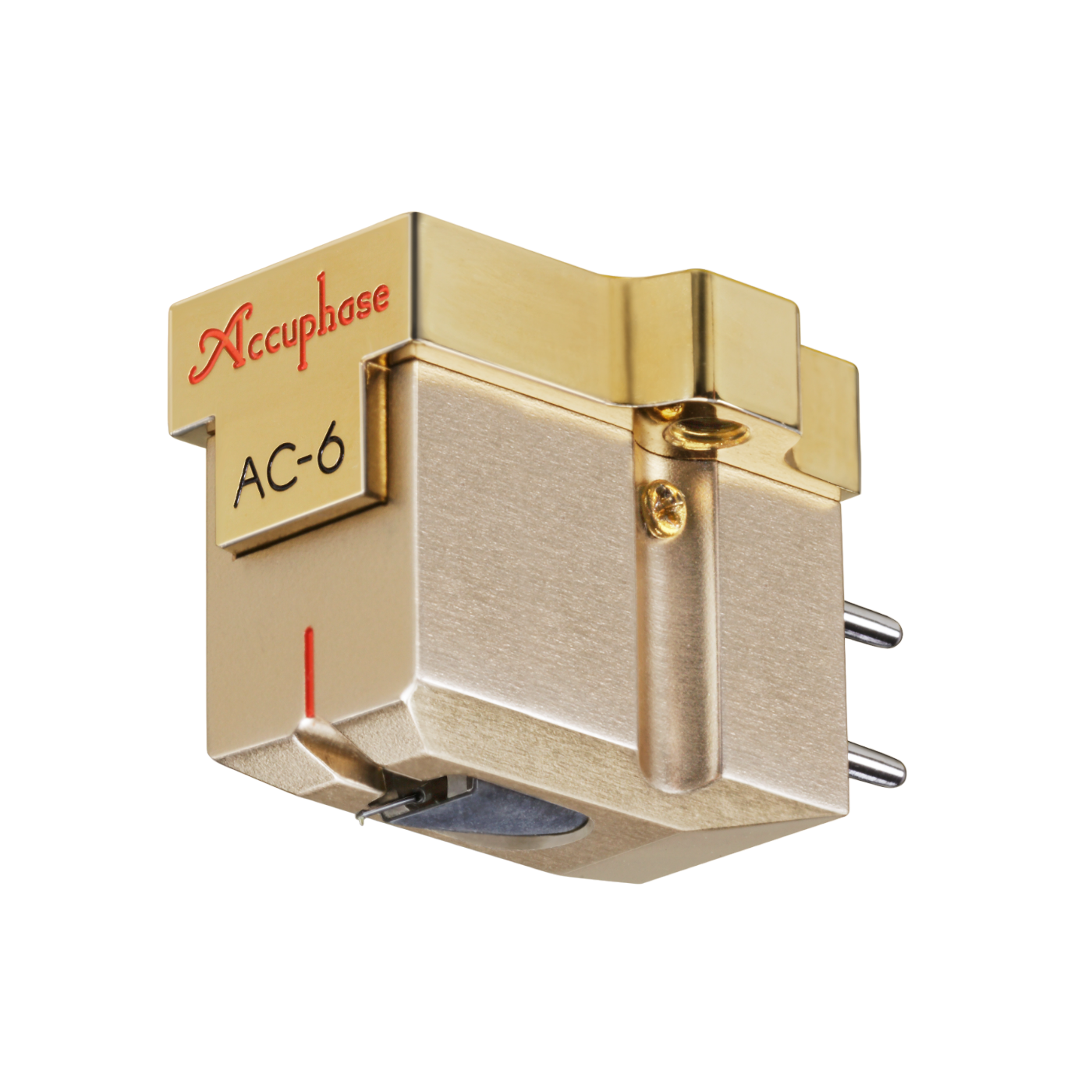

AC-6 | MC Phono Cartridge
Why we love it
- Coup de Coeur
- Made in Japan
Description
Every single aspect of the cartridge has been finely honed to deliver optimum performance, ushering the listener into the wonderful world of analog records.
Specifications
- Cartridge type: Moving coil
- Frequency response: 10 Hz to 50 kHz
- Rated output voltage: 0.4 mV (1 kHz)
- Impedance: 1.8 ohms (DCR)
- Recommended tracking force: 1.9 to 2.2 g (centered on 2.0 g)
- Channel balance: Within 0.5 dB (1 kHz)
- Channel separation: 30 dB or better (1 kHz)
- Compliance: 8 x 10−6 cm/dyne at 100 Hz (CBS STR100)
- Recommended load impedance Amplifier: 100 ohms or higher
- Recommended load impedance Step-up transformer: No limitations
- Stylus: Semi line contact type (3 μm × 30 μm)
- Cantilever: Solid boron, 0.3 mm dia.
- Core material: Special magnetic material
- Magnet: Neodymium N50
- Coil: OFC, 50 μm dia.
- Terminal pins: High-gloss rhodium plated
- Mass: 13.5 g
Warranty
2 years
