Accuphase

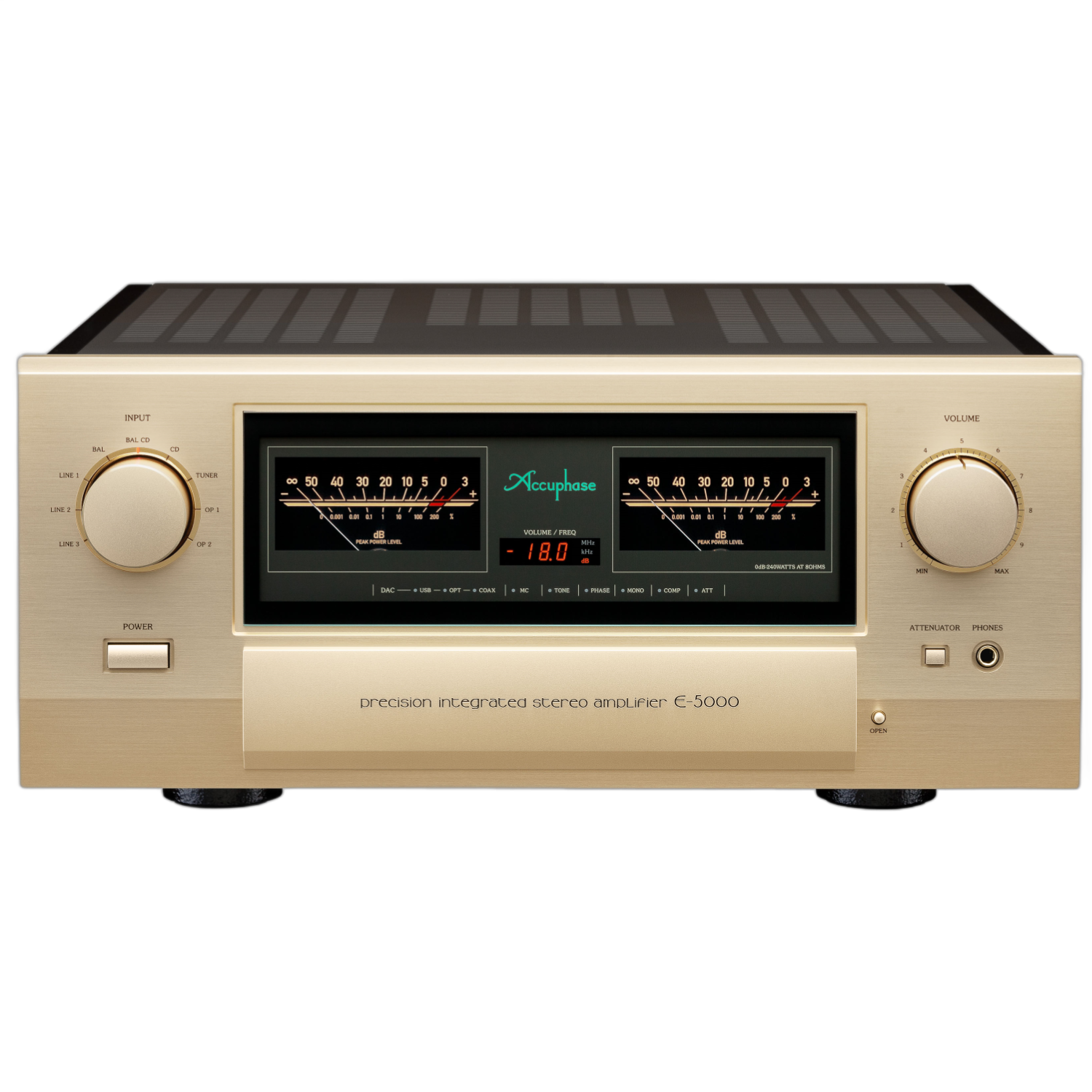

E-5000 | Integrated Amplifier
Special Request
Why we love it
Description
Specifications
- Dynamic output of 240W / ch (8Ω) and 320W / ch (4Ω)
- Balanced AAVA volume control
- Highly reliable logic-control signal switching relays

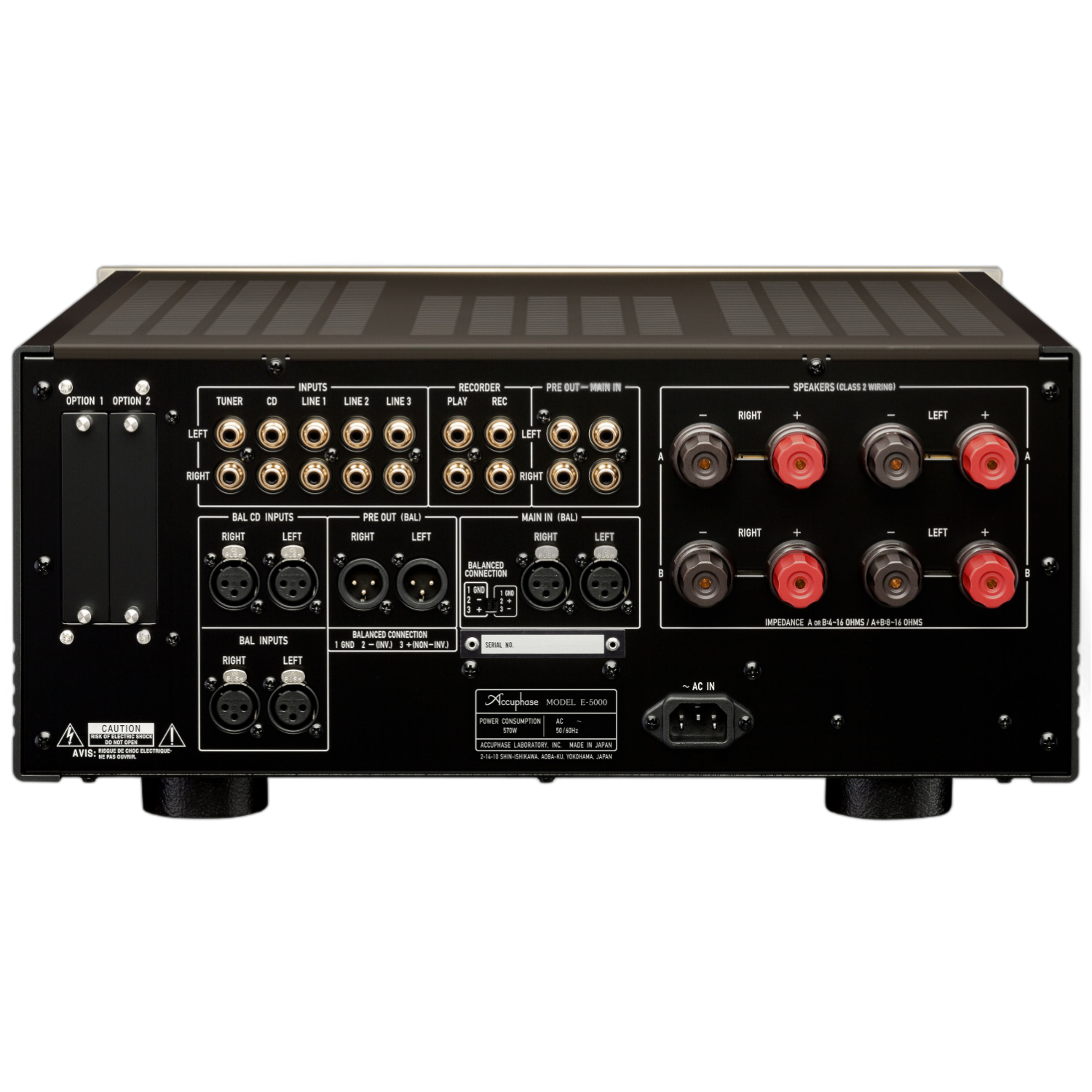

- Ample input connectors (Five line level and two balanced)
- Line level input and output connectors for a recorder
- Individual phase setting for each input
- Stereo signal can be switched to monophonic operation
- Left / right balance control through Balanced AAVA
- Volume attenuator that can instantly reduce sound as low as –20 dB
- Loudness compensator to adjust audible sonic balance
- Tone controls using summing active filters
- Power amplification stage employs instrumentation amplifier principle
- Current feedback amplification circuit topology assures excellent phase characteristics in high range
- Speaker output protection circuit guards against short-circuiting
- Protection circuitry using low impedance, highly reliable MOS-FET switches
- Two massive speaker connectors for output switching and simultaneous output
- Line level and balanced outputs at the preamplifier section support bi-amping connection
- Line level and balanced inputs at the power amp section allow use as a power amplifier
- Dedicated, high-quality headphone amplifier constructed with discrete components
- Two expansion slots for option boards
- Dimensions: Width 465 mm (18.31") × Height 211 mm (8.31") × Depth 502 mm (19.76")
- Weight: 33.8 kg (74.5 lbs)
Warranty
