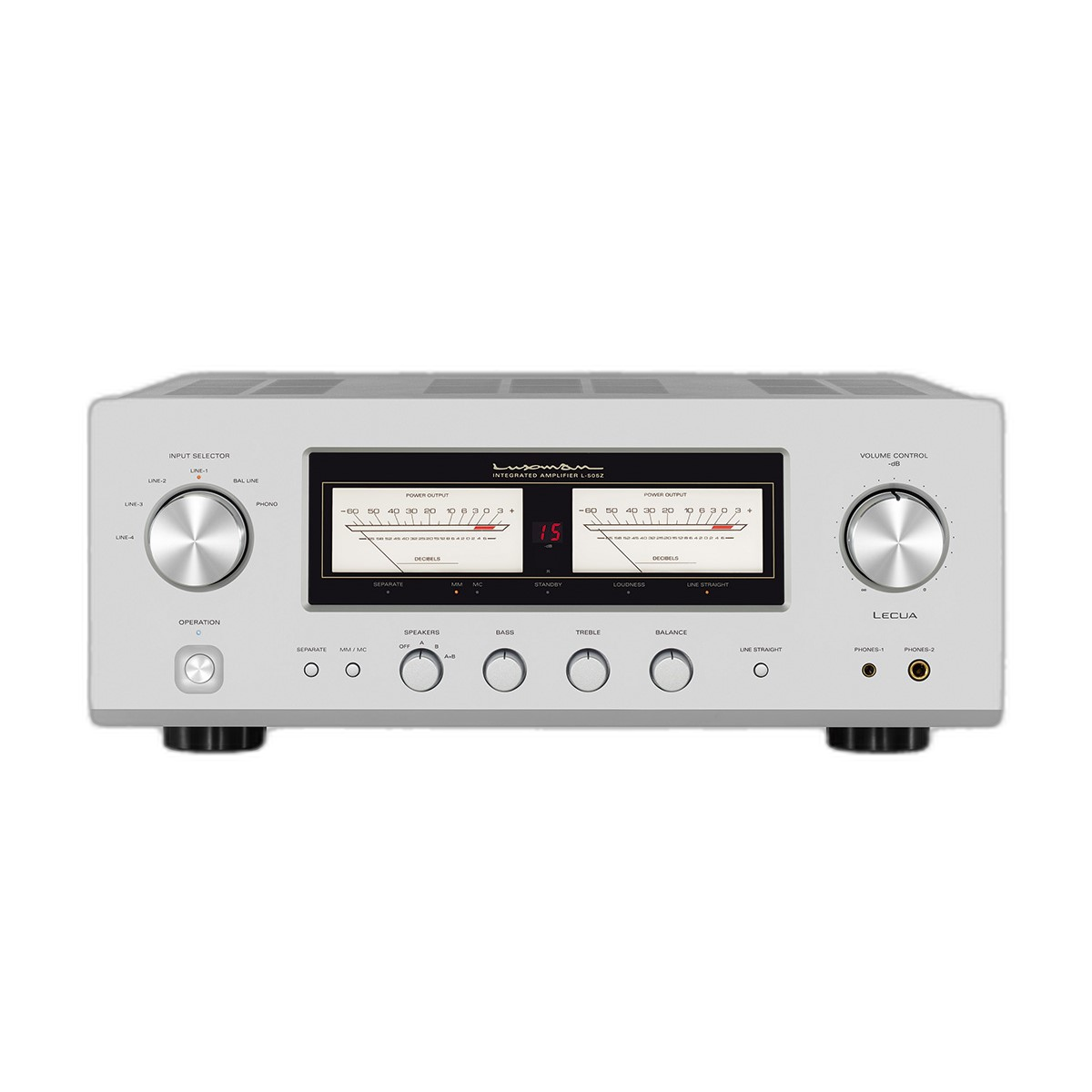

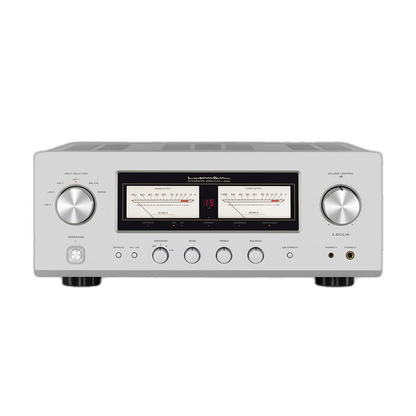

L-505Z | Amplificateur Intégré

• Made in Japan

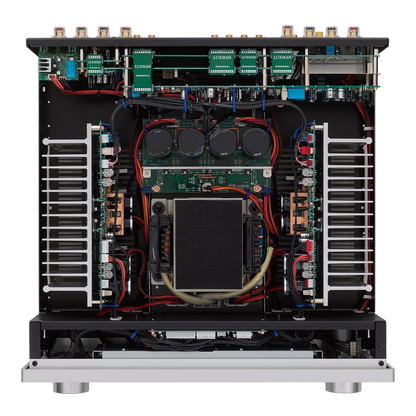

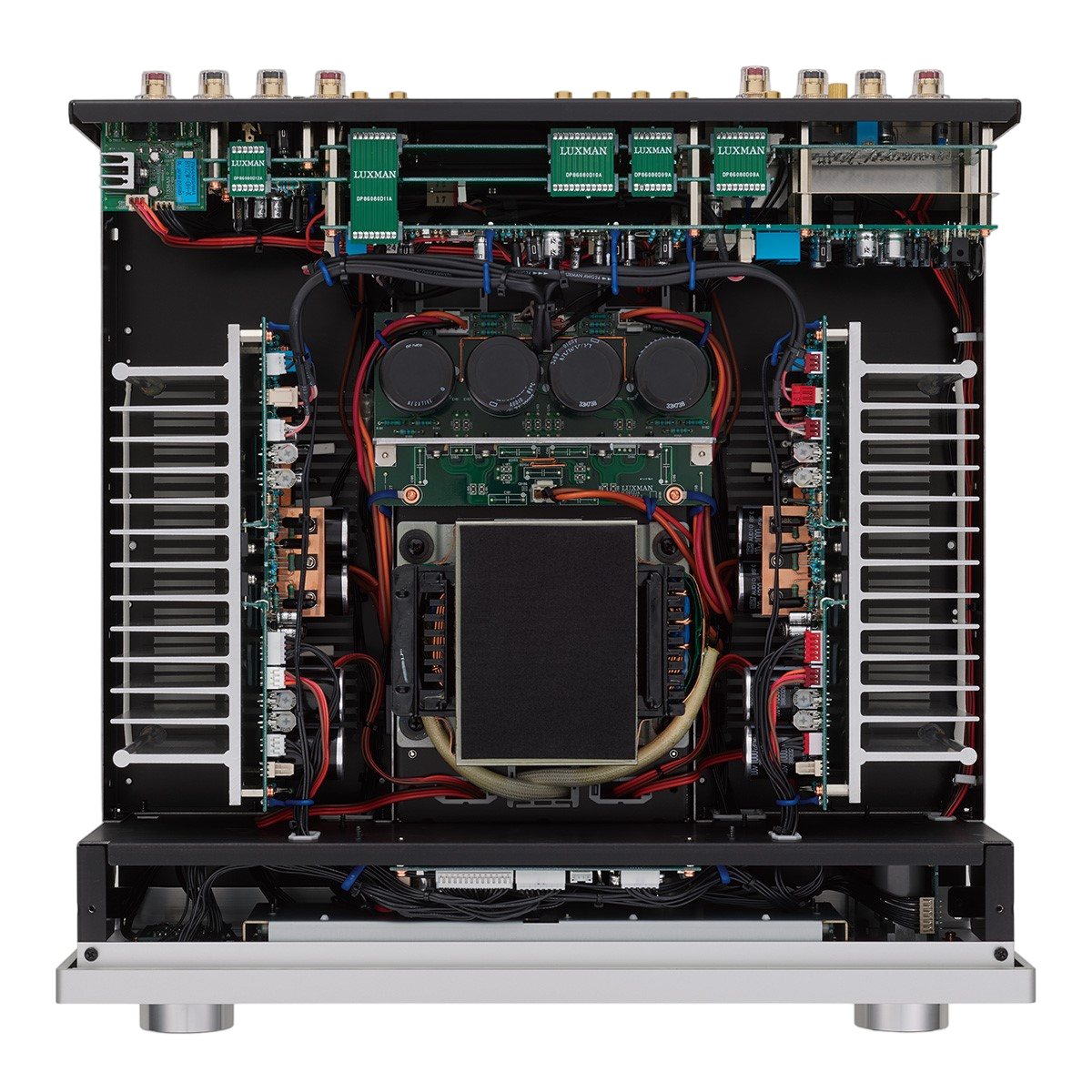

The L-505Z delivers ultimate performance and sound quality, thanks to a completely rebuilt and simplified circuit.

Click here for more information

• Rated output: 100W + 100W (8Ω), 150W + 150W (4Ω)
• Total harmonic distortion: 0.009% or less (8Ω, 1kHz) 0.09% or less (8Ω, 20Hz to 20kHz)
• Pre-amplifier Input sensitivity/input impedance: PHONO (MM): 2.5mV/47kΩ | PHONO (MC): 0.3mV/100Ω | LINE: 180mV/47kΩ | BAL.LINE: 180mV/55kΩ | MAIN IN: 1V/47kΩ
• S/N ratio (IHF-A): PHONO (MM): 87dB or more | PHONO (MC): 70dB or more | LINE: 104dB or more
• Frequency response: PHONO: 20Hz to 20kHz (±0.5dB) | LINE: 20Hz to 100kHz (within -3dB)
• Max. amount of tone control: BASS: ±8dB at 100Hz | TREBLE: ±8dB at 10kHz
• Damping factor: 200
• External dimensions: 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth
• Net weight: 22.5kg (main unit)

3 Years
